The FCA Series allows you to converse with your computer in a language it understands… digital. When you connect line-level devices, such as synthesizers or the outputs of an audio mixer to an FCA1616 or FCA610, internal 24-bit A/D (Analog to Digital) converters swing into action, turning the audio signal into digital data. Now you can record and play back your masterpiece through a pair of active studio monitors or listen in the privacy of your favorite headphones.FCA1616
With its expanded 16 channel I/O, 4 MIDAS designed mic preamps and ADA8000 ADAT connectivity, the FCA1616 is ideal for more permanent applications, such as home and professional recording studios, as well as live performance multi-track recording rigs. All standard I/O formats are supported including analog, S/PDIF (coaxial and optical), ADAT and S/MUX. Built-in MIDI I/O allows you to connect keyboards and other outboard MIDI hardware. The single rack-space FCA1616 also features 8 analog Inserts for use of external effects such as compressors, gates and EQs, etc. A dedicated power supply is included.FCA610

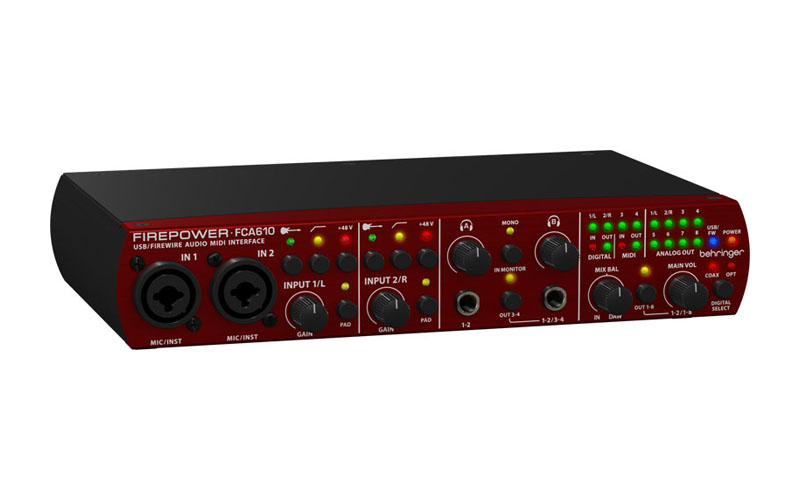

Due to its small size and low-latency operation, 6 In / 10 Out architecture, plus 2 highly-acclaimed MIDAS designed mic preamps, the FCA610 is a dream come true for traveling musicians who record and edit on their laptops. The portable FCA610 can receive power from your computer's 6-pin FireWire bus or via the included external power supply. Built-in MIDI I/O allows you to connect keyboards and other outboard MIDI hardware. All standard I/O formats are supported including analog and S/PDIF (both coaxial and optical). The half-rack-space FCA610 stows easily in your travel kit.Getting Connected
On the rear panels of the FCA1616 and FCA610, you’ll find ports for FireWire and USB 2.0. Inputs are balanced 1/4" jacks that accept a wide range of line-level devices. Outputs accept both balanced and unbalanced 1/4" connections. The two headphones jacks are conveniently located on the front panel, with a dedicated volume control.The Technical Stuff
Both FIREPOWER FCA1616 and FCA610 interfaces feature state-of-the-art, high-resolution 24-bit A/D-D/A converters, supporting up to a 96 kHz sampling rate. Reliable Windows XP, Windows Vista, Windows 7 drivers and Mac OS X support ensure ultra-low latency operation.How About Some Free Software!
Product Features:
2 state-of-the-art MIDAS designed mic preamplifiers, with phantom power, individual Pad, Low Cut and Hi-Z
Multi-channel audio and MIDI operation via FireWire or USB2.0
Compatible with popular recording software including Avid Pro Tools, Ableton Live, Steinberg Cubase, etc.
Streams 6 inputs / 10 outputs plus 1x MIDI I/O with ultra-low latency to your computer, supporting Mac OS X and Windows XP or higher
Ultra-flexible connectivity via analog and S/PDIF I/O ports (coaxial and optical)
Direct Monitoring and Main Volume control with “near-zero” latency
2 powerful Headphone outputs with individual Volume control, Mono and Source signal select
Level control of your stereo or 7.1 active speaker system with a single knob turn
Smooth cross-fading between inputs and DAW playback signals while your record sessions
Status and signal presence indication for all analog and digital I/O
Powered via external power supply (included) or 6-pin FireWire bus
Free audio recording, editing and podcasting software plus 150 instrument/effect plug-ins downloadable at www.behringer.com
Standard port for Kensington security lock
High-quality components and exceptionally rugged construction ensure long life
Conceived and designed by BEHRINGER Germany
