Behringer Ultradrive Pro DCX2496

+ Click images to enlarge

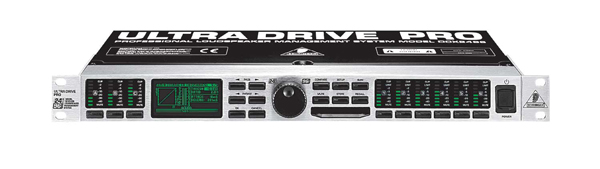

Behringer Ultradrive Pro DCX2496 Loudspeaker Management System

Email to a Friend

Be the first to review this product

Manufacturer

Availability: Usually ships within 3+ weeks.

$299.99
Add Items to Cart

Quick Overview

The ULTRADRIVE PRO DCX2496 is the ultimate digital loudspeaker management system with an unheard-of audio quality and feature list...

The ULTRADRIVE PRO DCX2496 is the ultimate digital loudspeaker management system with an unheard-of audio quality and feature list. It is an indispensable tool for the precise set-up of multiple loudspeaker systems or arrays. Installation contractors, live-sound engineers, cinemas/discotheques/concert hall operators will quickly learn to love this model’s rich features. Signals can be split in various ways to assure precise sound by using the optimal frequency range of each loudspeaker.

Start with its 3 analog inputs (one suitable as a digital stereo AES/EBU input) and 6 analog outputs. You get maximum flexibility in just one rack space. Superb high-end AKM® 24-bit/96 kHz A/D and D/A converters give you ultimate signal integrity and an extreme dynamic range of 113 dB. Easy connection of external digital signals with sampling rates from 32 to 96 kHz is a breeze with the integrated sample rate converter. There are pecise dynamic EQs for level-dependent equalization and extremely musical parametric EQs, selectable for all inputs and outputs, and “Zero“-attack limiters on all output channels guarantee optimal signal and loudspeaker protection.

You also get four different mono and stereo output operating modes, all with individual crossover filter types (Butterworth, Bessel and Linkwitz-Riley) with selectable roll-off characteristics from 6 to 48 dB/octave. The delays for all inputs and outputs are adjustable. This allows you to manually or automatically correct for room temperature, phase and arrival time differences. An additional sum signal is easily derived from the A/B/C inputs.

Now that remote control is such a hot topic, you’ll be glad that the future-proof ULTRADRIVE PRO software enables single or multi remote control via PC through RS-232 and RS-485 interfaces. And the link option via RS-485 network interface enables cascading of several ULTRADRIVE PROs. A Windows®-based editing software is available for download free of charge. No matter what the future brings, its open architecture assures easy software updates. A PCMCIA slot allows you to store all your settings and recall them anytime you change the location—virtually taking your ULTRADRIVE PRO with you.

Features:

 3 analog inputs (one suitable as digital stereo AES/EBU input) and 6 analog outputs for maximum flexibility
High-end AKM® 24-bit/96 kHz A/D and D/A converters for ultimate signal integrity and wide dynamic range (113 dB)
Integrated sample rate converter for easy connection of external digital signals with sampling rates from 32 to 96 kHz
Precise dynamic EQs for level-dependent equalization and extremely musical parametric EQs, selectable for all inputs and outputs
Several types of EQs (LP/BP/HP) for each input and output
"Zero"-attack limiters on all output channels for optimal speaker protection
Four different mono and stereo output operating modes
Individual crossover filter types (Butterworth, Bessel and Linkwitz-Riley) with selectable roll-off characteristics from 6 to 48 dB/octave
Adjustable delays for all inputs and outputs-allow manual or automatic correction for room temperature, phase and arrival time differences
Additional sum signal derived from the A/B/C inputs offers a fourth internal input signal
Future-proof ULTRADRIVE PRO software enables single or multi remote control via PC through RS-232 and RS-485 interfaces
Link option via RS-485 network interface enables cascading of several ULTRADRIVE PROs
60 user-defined internal presets storable via PC software or on PCMCIA card
Open architecture assures easy software updates
Servo-balanced, gold-plated XLR connectors for all inputs and outputs
High-quality components and exceptionally rugged construction for long life and durability
Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus lowest possible power consumption
Conceived and designed by BEHRINGER Germany
