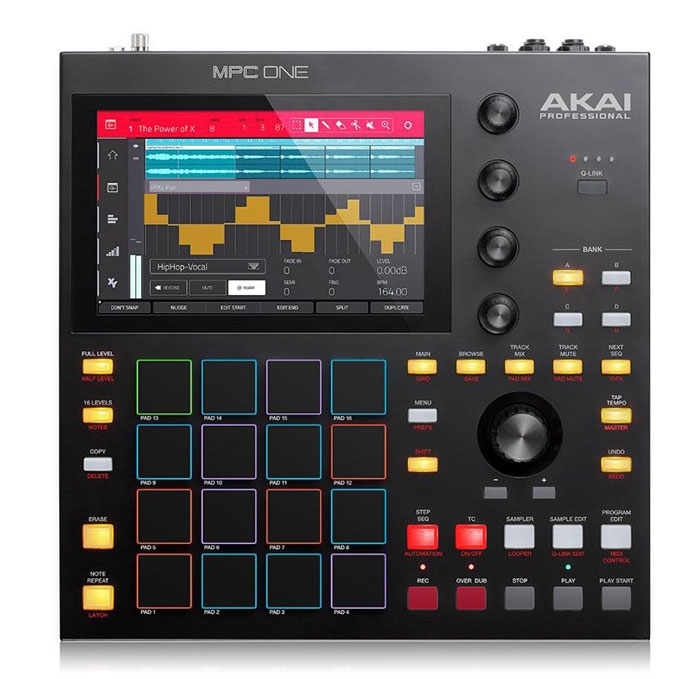

MPC ONE
STANDALONE MPC EXPERIENCE
FEATURES
Standalone MPC – no computer required
Powerful Multicore System from the MPC Live and MPC X
16 velocity-sensitive RGB Pads
7-inch high-resolution multi-touch display
2GB RAM, 4GB of on-board storage
Mac & PC Controller for MPC Software (Included)
Stereo Line-Level Inputs • MIDI In and MIDI Out
4 TRS CV/Gate Jacks, 8 Outputs Total
(1) USB-A 3.0 Slot for thumb drive or MIDI Controller
SD card slot
KEY SPECS
Pads
(16) velocity- and pressure-sensitive pads, RGB-backlit
(8) banks accessible via Pad Bank buttons
(8) banks accessible via Pad Bank buttons
Knobs
(4) 360° touch-sensitive Q-Link Knobs
(4) Q-Link Knob columns accessible via Q-Link button
(1) 360° encoder for display navigation and selection via push
(4) Q-Link Knob columns accessible via Q-Link button
(1) 360° encoder for display navigation and selection via push
Buttons
(31) dedicated function buttons; red-, amber-, or green-backlit
Display
7.0” / 177 mm (diagonal)
5.9” x 3.7” / 151 x 94 mm (width x height)
Full-color LED-backlit display with touch interface
5.9” x 3.7” / 151 x 94 mm (width x height)
Full-color LED-backlit display with touch interface
CPU
Processor: Quad-core ARM® processor
RAM: 2 GB
Storage: 2 GB user storage, 2 GB pre-installed content
Connections
(2) 1/4” (6.35 mm) TRS inputs (1 stereo pair)
(2) 1/4” (6.35 mm) TRS outputs (1 stereo pair)
(1) 1/8” (3.5 mm) stereo headphone output
(1) 5-pin MIDI inputs
(1) 5-pin MIDI outputs
(4) 4 TRS CV/Gate Jacks, 8 Outputs Total
(1) USB Type-A port
(1) USB Type-B port
(1) SD Card slot
(1) Power Adapter input
(2) 1/4” (6.35 mm) TRS outputs (1 stereo pair)
(1) 1/8” (3.5 mm) stereo headphone output
(1) 5-pin MIDI inputs
(1) 5-pin MIDI outputs
(4) 4 TRS CV/Gate Jacks, 8 Outputs Total
(1) USB Type-A port
(1) USB Type-B port
(1) SD Card slot
(1) Power Adapter input
Power
Via power adapter: 19 V, 3.42 A, center-positive, included
Dimensions (width x depth x height)
10.7” x 10.7” x 2.1”
272 x 272 x 53 mm
272 x 272 x 53 mm
Weight
4.7 lbs
2.1 kg
2.1 kg
| Variant | 1 |
