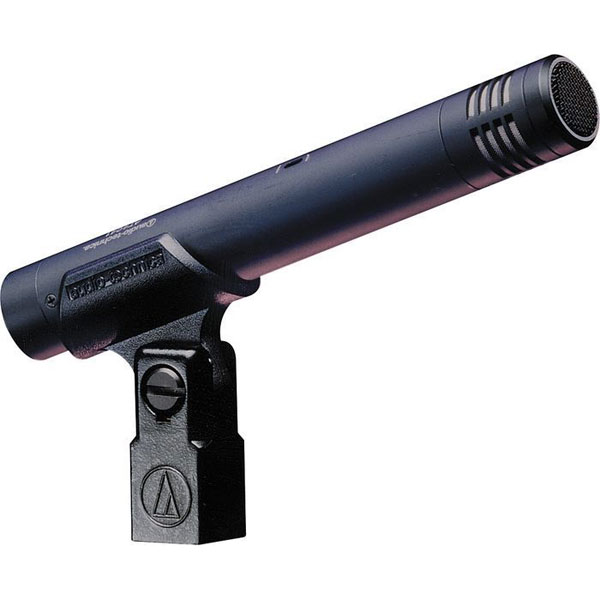

Audio Technica AT4041 element back plate

Email to a Friend

Be the first to review this product

Manufacturer

Availability: Usually ships immediately.

$299.00
Add Items to Cart

Quick Overview

Engineered to meet the most critical acoustic requirements of professional recording, broadcast and live sound, the AT4041 features a smooth, extended frequency response with a slight rise in the high-frequency region and a transformerless output for very high SPL-handling capability. The element back plate holds a fixed charge and has been aged to provide energy stabilization. The surface of the back plate is precision milled to ensure maximum charge linearity, resulting in a reduction in both frequency response peaks and diaphragm break-up distortion.



Features

Smooth, extended frequency response with a slight rise occurring in the high-frequency region
Ideal for drum overheads, acoustic guitar, piano, horns and under snare
Low-mass diaphragm improves transient response, increases response bandwidth and reduces handling and mechanical noise transfer
Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards
Switchable hi-pass filter and rugged turned-brass microphone housing
Custom shock mount provides superior isolation



Specifications

Element: Fixed-charge back plate, permanently polarized condenser

Polar Pattern: Cardioid

Frequency Response: 20-20,000 Hz

Low Frequency Roll-Off: 80 Hz, 12 dB/octave

Off Circuit Sensitivity: -36 dB (15.8 mV), re 1V at 1 Pa

Impedance: 100 ohms

Maximum Input Sound Level: 145 dB SPL, 1 kHz at 1% T.H.D.

Dynamic Range (typical): 121 dB, 1 kHz at Max SPL

Signal-To-Noise Ratio: 70 dB, 1 kHz at 1 Pa

Phantom Power Requirements: 48V DC, 3.2 mA typical

Switch: Flat, roll-off

Weight : 4.2 oz (120 g)

Dimensions: 6.28" (159.5 mm) long, 0.83" (21.0 mm) body diameter

Output Connector: Integral 3-pin XLRM-type

Accesories Furnished: AT8405a stand clamp for 5/8"-27 threaded stands; AT8159 windscreen; protective carrying case

Audio-Technica Case Style: S1
