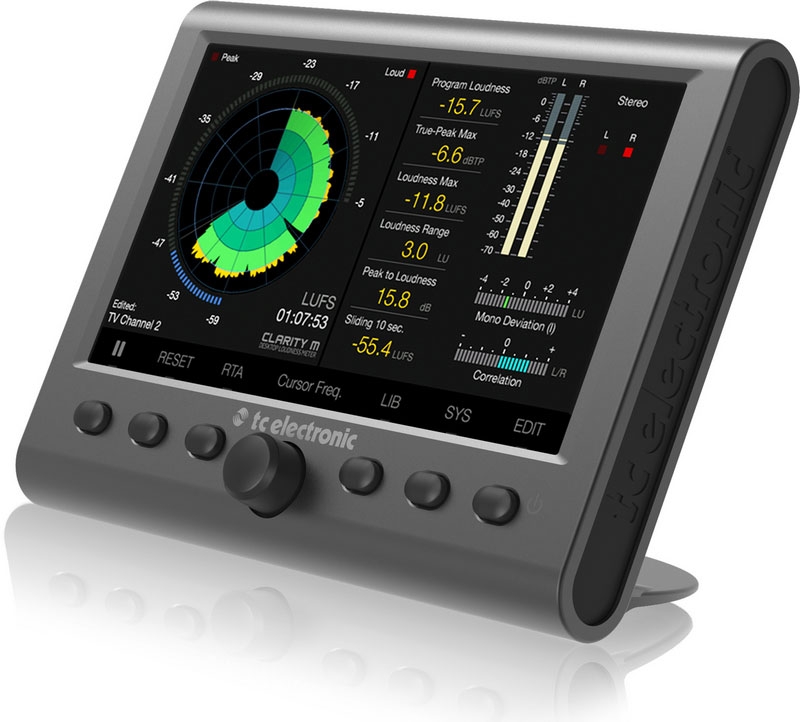

TC Electronic Clarity M Stereo and 5.1 Audio Loudness Meter

Email to a Friend

Be the first to review this product

Manufacturer

Availability: Usually ships within 2-7 days.

$499.00

$299.00

Add Items to Cart

Quick Overview

Stereo and 5.1 Audio Loudness Meter with 7" High Resolution Display and USB Connection for Plug-In Metering

CLARITY M

Stereo and 5.1 Audio Loudness Meter with 7" High Resolution Display and USB Connection for Plug-In Metering

Professional stereo and 5.1 audio meter for mixing, mastering and post production
7” high resolution LCD display for precision metering in all studio environments
USB connection for hassle-free VST*, Audio Units and AAX* plug-in metering
Compliant with all major broadcast standards including ITU BS.1770-4, ATSC A/85, EBU R128, TR-B32 and OP-59
6 input channels of unbalanced AES3 digital audio on 75 Ohm BNC connectors for broadcast-grade 5.1 metering
Legendary LM6 Loudness Radar Meter provides all essential loudness monitoring information on a single screen
State-of-the-art true peak meter identifies clipping in DACs, CODECs and downstream filters
Downmix compliance meter based on TC ELECTRONIC's industry-standard loudness measurement algorithms
Precision stereo/surround correlation meters
High accuracy real time analyzer with 1/3 octave resolution
Detailed statistics overview for all key loudness measuring parameters
Provision for custom logo on LCD display
RAM-mount compatible for wall or ceiling mounting (not included)
Stereo Optical Input for TOSLink* source
General purpose input (GPI) for meter reset
10-Year Warranty Program*
Designed and engineered in Denmark



My default image


CLARITY M

The perfect audio toolbox for music creation and sound for picture, CLARITY M helps you make those crucial mix and mastering decisions.

    • Stereo and 5.1 Audio Meter for Mixing, Mastering and Post Production
    • 7" High Resolution Display for Precision Metering
    • USB Connection for Seamless Plug-In Metering




My default image

Meter with Precision

Naturally no piece of equipment can replace your ears, but precise metering allows you to visually confirm specific details about your mix, making the process of setting optimum signal levels both quicker and easier.

With the CLARITY M you get a wealth of dedicated meters, that can greatly help you improve your mix - and with the 7" high-resolution screen, you are sure to always get maximum precision and definition in the readouts.

By providing you with both that quick overview and the ever-important fine points at a glance, the precision meters of the CLARITY M is perfectly suited for any mixing or mastering job - whether it's for music, picture or drama.

My default image

Free Your DAW

Most plug-ins, like reverbs and compressors, you only fire up a few times during a session; you adjust the appropriate parameters and close the plug-in once you're done in order to save precious screen real-estate.

Your metering tools, however, need to be in plain sight at all times. The CLARITY M connects seamlessly with your DAW workflow via a USB connection and allows you to get precise readouts from any output, you need.

With the visual feedback of your mix pushed to a permanent screen, you no longer need to move plug-in windows around to have both your sequencer, effects and meters visible. CLARITY M is quite simply the perfect integration of two worlds.



My default image


What’s new in 2.0?

The free software update for Clarity M will take your metering to the next level. The update is highly music oriented and adds a string of requests from the user community.




Meters Overview

With the high resolution LCD display of the CLARITY M, you're readout will always be crisp and clear. Unparalleled in functions, the CLARITY M provides a veritable audio toolbox to help you make the right mix and mastering decisions - in any studio environment. All the meters below are available out-of-the-box, no additional licenses required.




Gallo: "Essential for Any Dynamic Mix"

Chief engineer Anthony "Rocky" Gallo has worked on killer material from artists such as John Legend, Norah Jones and Cat Power.

We met up with him in his New York studio to get his thoughts on CLARITY M and the importance of metering.


My default image

A Professional Audio Toolbox

Unparalleled in functions, the CLARITY M provides a veritable audio toolbox to help you make the right mix and mastering decisions, and with the high resolution LCD display, your readout will always be crisp and clear - in any studio environment.





Detailed statistics overview for all key loudness measuring parameters



State-of-the-art surround True-Peak meter identifies clipping in DACs, CODECs and downstream filters



High accuracy Real Time Analyzer with 1/3 octave resolution and individual band zoom



Stereo downmix compliance meter based on TC ELECTRONIC's industry-standard loudness measurement algorithms





Surround correlation meter



Input source. In plug-in mode this displays the number and name of the track that is being monitored



Innovative Balance-O-Meter lets you quickly check the Left-Right and Mid-Side balances of your mix.



State-of-the-art stereo True-Peak meter identifies clipping in DACs, CODECs and downstream filters





Radar loudness meter showing short term loudness history and momentary loudness



Mono downmix compliance meter based on TC ELECTRONIC's industry-standard loudness measurement algorithms



Stereo correlation meter



Customizable space for your company logo





Holes for mounting brackets such as RAM-mount (not included)



Hole for Kensington Lock



Power connection



Stereo optical input



Connector for custom breakout cable with 6 channels AES inputs and General Purpose Input/Output

USB connection for plug-in metering, preset exchange and firmware updates




My default image


Ready for Any DAW

CLARITY M supports plug-in metering via all modern plug-in standards, giving you the freedom to work with any DAW you prefer.

    • Pro Tools (AAX Native)

    • Cubase, Nuendo, Wavelab, Premiere and more (VST)

    • Logic Pro, Final Cut Pro (Audio Units)



My default image


Seamless DAW Integration

Bridging the gap between the hardware and software worlds, CLARITY M lets you easily insert the routing plug-in anywhere in your DAW and enjoy the pristine readout on your CLARITY M. With this unique feature you get hassle-free integration with your workflow in ProTools or any other DAW - for both stereo and 5.1 projects.



My default image

Plug-In Details

While the CLARITY M is an exceptional stand-alone desktop meter, it also connects seamlessly with your DAW workflow through our innovative plug-in metering.


If enabled, the meter starts and stops together with your DAW

If enabled, the meter automatically resets when you press Play

Connection status

Displays the plug-in instance name

Start / stop metering

Reset metering

Channel configuration

Menu with links to updates, manuals etc

Manually enter a name for the plug-in instance
My default image


Reset with a Tap

With the custom breakout cable included with the CLARITY M, you can hook up a two-button footswitch for easy resetting of the meter as well as for triggering play and pause.

It also allows you to monitor indications of overload to external equipment.



My default image


A Myriad of Mounting Options

Suited for any studio environment, the CLARITY M gives you a wide array of mounting options.

Out of the box it includes an integrated stand, making it easy to place on any desktop.

On the back of the CLARITY M you'll find a pair of mounting holes, that provide compatibility with third party mounts such as the Tough Claw or suction cup mount from RAM Mounts.

RAM Mounts are not included with CLARITY M, but can be purchased from RAMMOUNT.com.



My default image


My default image


Keeping It Consistent

We all know the experience - listening to the radio or watching TV when suddenly a loud commercial jumps out, sending you grabbing for the volume control.

By taking the guesswork out of loudness, the CLARITY M makes sure your levels are steady and helps your reduce level jumps between programs or tracks.

Fully compliant with all major broadcast standards - both global and local - it allows you to mix with confidence, always knowing that your mixes are ready for broadcast.




My default image


Loudness Website

Keeping track of the multitude of issues around loudness can be a challenge. That's why we've created a one-stop dedicated loudness website where you'll find critical information on the most important issues.

The site is an answer to the highly relevant question: "What Is Loudness, and Why Is It Important?"







My default image


Perfect for Music

With support for 96 kHz digital stereo input and its powerful suite of dedicated stereo tools, CLARITY M is the ultimate metering extension for music production and mixing.

Based on our industry-standard loudness algorithms, the deviation meter helps you avoid unwanted mix-down surprises, and ensures that your mix sounds great no matter how it’s played back.

The vector scope and correlation meter lets you easily identify phase issues and check the important stereo balance of your mix, and with our innovative Balance-O-Meter you can quickly check your left-right and mid-side balances in one view.

The powerful RTA meter lets you monitor frequencies outside your hearing range and easily pinpoint where your mix is mudding up.




My default image


Offline Measurement

The offline plug-in mode gives you instant overview of your song or track by measuring it faster than realtime from within your VST, AU or AAX compatible DAW.

Just pick your track, bounce it and watch the lightning fast algorithm do its measurement magic.



My default image


PPM Meter Scales

Highly configurable, the CLARITY M PPM meter is perfect for all sorts of broadcast and music production purposes.

Aside from the classic PPM60 scale, the scales in CLARITY M cover a multitude of integration and return times, different Permitted Maximum and Alignment Levels as well as various methods for handling transients in the signal.





My default image


Get Connected

The CLARITY M provides a wealth of digital connectivity.

Our custom breakout cable (included) hosts 6 channels of unbalanced AES3 digital audio, that connects to your external mixing desk, console or audio interface for broadcast-grade 5.1 metering.

CLARITY M also provides a stereo optical input that lets you connect your audio interface through TOSlink for maximum flexibility.




Artists Using CLARITY M

Tony Maserati

Beyoncé, Ariana Grande



Jason LaRocca

Paddington, The Accountant



Brendan Morawski

Santigold, Alicia Keys



Mark Christensen

50 Cent, Toni Braxton



*All third-party trademarks are the property of their respective owners. Their use neither constitutes a claim of the trademark nor affiliation of the trademark owners with MUSIC Tribe. Product names are mentioned solely as a reference for compatibility, effects and/or components. Warranty details can be found at musictri.be.



Specifications

Displays and controls

User controls

Rotary encoder 6 selection buttons

Display

7" TFT (color) 800 x 480 pixels

Power

Power consumption

12 V DC, 0.5 A

Physical

Dimensions

182 x 140 x 25 mm (7.2 x 5.5 x 1")

Weight

0.85 kg (1.9 lbs) (excluding cable)

Accessories

Included accessories

AC adapter DB15 cable assembly BNC female to RCA male adapter USB cable (type A female to micro B male), 1 m long

Compliance

Complies with

ITU BS.1770-4, ATSC A/85, EBU R128, TR-B32 and OP-59

Sample rates

Physical input, stereo

44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

Plug-in mode

44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

Physical input, surround

44.1 kHz, 48 kHz

RAM Mount (not included)

Compatible RAM Mounts for CLARITY M.
